Cylinder absorption correction. More...

Inheritance diagram for ObjCryst::CylinderAbsCorr:

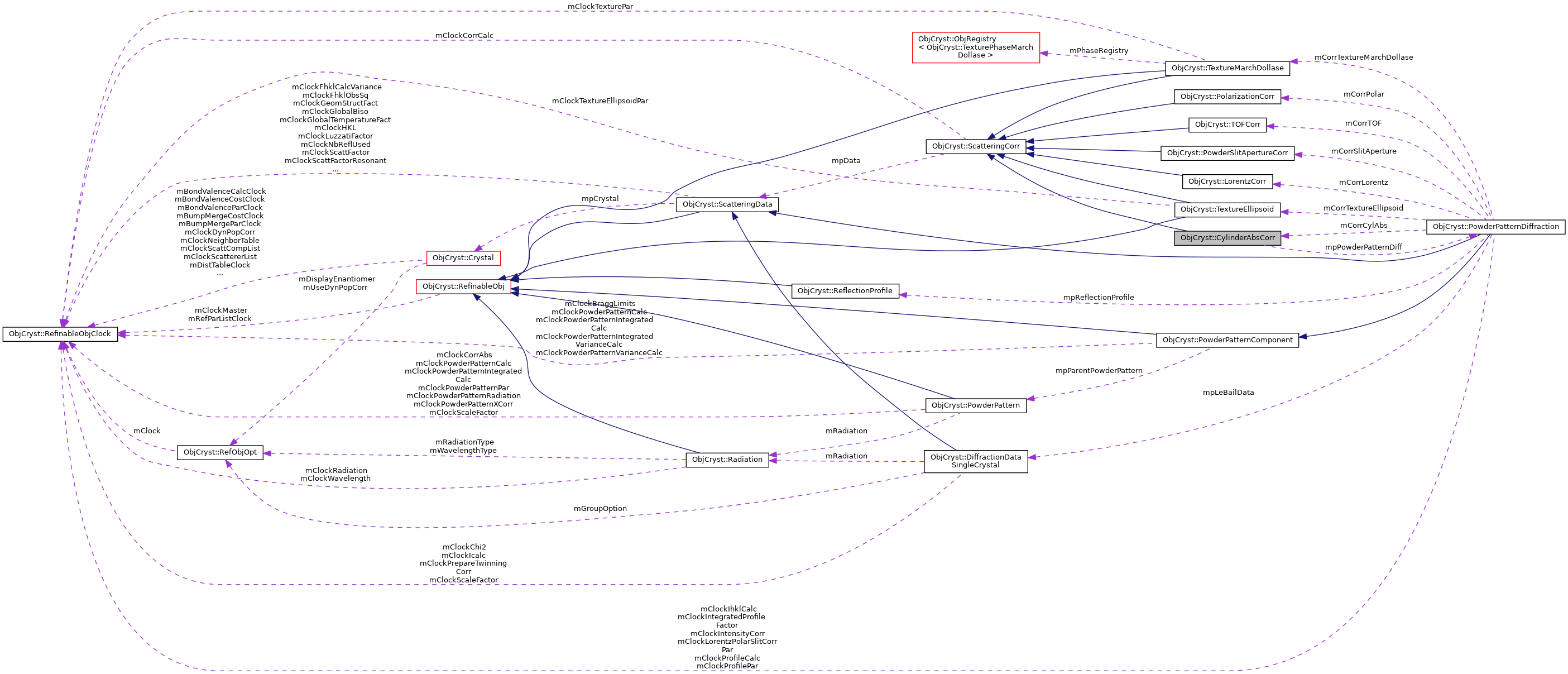

Collaboration diagram for ObjCryst::CylinderAbsCorr:

Public Member Functions
	CylinderAbsCorr (const PowderPatternDiffraction &data)
	Constructor. More...

virtual const string &	GetName () const
	Get the name of this object.

virtual const string &	GetClassName () const
	Get the name of the class.

Public Member Functions inherited from ObjCryst::ScatteringCorr
	ScatteringCorr (const ScatteringData &data)
	Constructor, with the associated ScatteringData object.

const CrystVector_REAL &	GetCorr () const
	Get the vector of corrections for all reflections. More...

const RefinableObjClock &	GetClockCorr () const
	Get the value of the clock corresponding to the last time the correction was actually computed.

Protected Member Functions
virtual void	CalcCorr () const
	Do the computation of corrected intensities.

Protected Attributes
const PowderPatternDiffraction *	mpPowderPatternDiff

Protected Attributes inherited from ObjCryst::ScatteringCorr
const ScatteringData *	mpData
	The associated ScatteringData object.

CrystVector_REAL	mCorr
	The vector of correction to intensities.

RefinableObjClock	mClockCorrCalc
	The clock marking the last time the correction was calculated.

Detailed Description

Cylinder absorption correction.

Correction formulas from Lobanov & Alte da Veiga, Code re-implemented from GSAS-II (courtesy of B. von Dreele), original version: https://subversion.xray.aps.anl.gov/trac/pyGSAS/browser/trunk/GSASIIpwd.py

Definition at line 49 of file PowderPattern.h.

Constructor & Destructor Documentation

ObjCryst::CylinderAbsCorr::CylinderAbsCorr ( const PowderPatternDiffraction & data )

Constructor.

Parameters

powp	the PowderPattern object which has the muR parameter

Definition at line 64 of file PowderPattern.cpp.

The documentation for this class was generated from the following files:
