Object Registry. More...

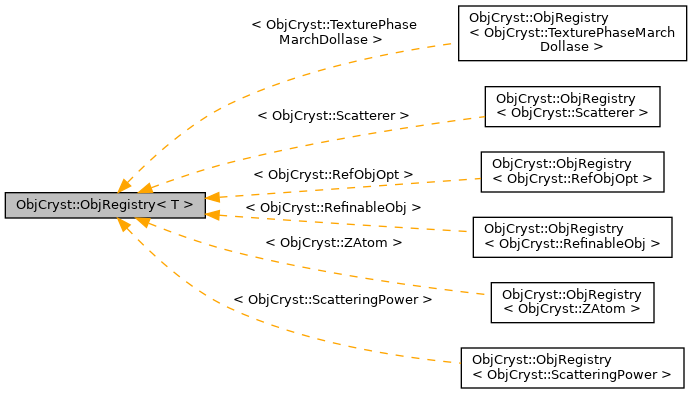

Inheritance diagram for ObjCryst::ObjRegistry< T >:

Collaboration diagram for ObjCryst::ObjRegistry< T >:

Public Member Functions
	ObjRegistry (const string &name)

void	Register (T &obj)
	Register a new object. Already registered objects are skipped.

void	DeRegister (T &obj)
	De-register an object.

void	DeRegister (const string &objName)
	De-register an object from its name.

void	DeRegisterAll ()
	De-register all objects from the list.

void	DeleteAll ()
	Delete all objects in the registry.. Use with caution !!

T &	GetObj (const unsigned int i)
	Get object #i in the registry. More...

const T &	GetObj (const unsigned int i) const
	Get object #i in the registry. More...

T &	GetObj (const string &objName)
	Get an object from its name in the registry. More...

const T &	GetObj (const string &objName) const
	Get an object from its name in the registry. More...

T &	GetObj (const string &objName, const string &className)
	Get an object from its name in the registry. More...

const T &	GetObj (const string &objName, const string &className) const
	Get an object from its name in the registry. More...

long	GetNb () const
	Get the index of an object in the registry, from its name Warning: it can change if an object is removed from the registry.

void	Print () const

void	SetName (const string &)

const string &	GetName () const

long	Find (const string &objName) const
	Find the number of an object in the registry from its name (slow !) The search starts at the end of the registry.

long	Find (const string &objName, const string &className, const bool nothrow=false) const
	Find the number of an object in the registry from its name (slow !) The search starts at the end of the registry. More...

long	Find (const T &obj) const
	Find the number of an object in the registry The search starts at the end of the registry.

long	Find (const T *pobj) const
	Find the number of an object in the registry The search starts at the end of the registry.

const RefinableObjClock &	GetRegistryClock () const
	Last time an object was added or removed from the registry.

void	AutoUpdateUI (const bool autoup=true)
	Enable the UI automatic update, so that objects in the registry are automatically added to the UI.

void	UpdateUI ()
	Manually update the UI, making sure all objects in the registry are displayed This is useful when the automatic adding of objects has been disabled.

std::size_t	size () const
	STL access to object size.

vector< T * >::const_iterator	begin () const
	low-level access to the underlying vector begin(). More...

vector< T * >::const_iterator	end () const
	low-level access to the underlying vector end(). More...

std::list< T * >::const_iterator	list_begin () const
	low-level access to the underlying list begin(). More...

std::list< T * >::const_iterator	list_end () const
	low-level access to the underlying list end(). More...

Private Attributes
vector< T * >	mvpRegistry
	The registry of objects.

std::list< T * >	mvpRegistryList
	Another view of the registry of objects - this time as a std::list, which will not be invalidated if one object is deleted.

string	mName
	Name of this registry.

RefinableObjClock	mListClock
	Last time an object was added or removed.

bool	mAutoUpdateUI
	Enable the user interface update. More...

Detailed Description

template<class T>
class ObjCryst::ObjRegistry< T >

Object Registry.

This class is used to keep a list of all object of a given class at the global level, or inside another object. This is primarily aimed for the derivative of the RefinableObj class but it can be used for any class that has GetName() and GetClassName() function. This class now uses a vector<> approach from the STL.

Warning: the order of the objects in the registry can change (every time an object is de-registered).

Todo:: (?) create two derived classes with the same interface, one which is a const registry (the 'client' registry for RefinableObj), and one which has a non-const access to the registered objects (the 'sub-objects' in RefinableObj).

Definition at line 644 of file RefinableObj.h.

Member Function Documentation

◆ begin()

template<class T >

vector< T * >::const_iterator ObjCryst::ObjRegistry< T >::begin

low-level access to the underlying vector begin().

Const access as we do not want the number and order of objects to change, but the objects themselves can be modified.

Warning: : the iterator can be invalidated if the registry is modified

Definition at line 1138 of file RefinableObj.cpp.

◆ end()

template<class T >

vector< T * >::const_iterator ObjCryst::ObjRegistry< T >::end

low-level access to the underlying vector end().

Const access as we do not want the number and order of objects to change, but the objects themselves can be modified.

Warning: : the iterator can be invalidated if the registry is modified

Definition at line 1143 of file RefinableObj.cpp.

◆ Find()

template<class T >

long ObjCryst::ObjRegistry< T >::Find	(	const string &	objName,
		const string &	className,
		const bool	nothrow = `false`
	)		const

Find the number of an object in the registry from its name (slow !) The search starts at the end of the registry.

Also check the class of the object (inheritance...). use nothrow=true to avoid having an exception thrown if no object is found (instead the index returned will be -1)

Definition at line 1071 of file RefinableObj.cpp.

◆ GetObj() [1/6]

template<class T >

T & ObjCryst::ObjRegistry< T >::GetObj ( const string & objName )

Get an object from its name in the registry.

The search starts at the end of the registry.

Definition at line 1008 of file RefinableObj.cpp.

◆ GetObj() [2/6]

template<class T >

const T & ObjCryst::ObjRegistry< T >::GetObj ( const string & objName ) const

Get an object from its name in the registry.

The search starts at the end of the registry.

Definition at line 1014 of file RefinableObj.cpp.

◆ GetObj() [3/6]

template<class T >

T & ObjCryst::ObjRegistry< T >::GetObj	(	const string &	objName,
		const string &	className
	)

Get an object from its name in the registry.

The search starts at the end of the registry. Also check the class of the object.

Definition at line 1020 of file RefinableObj.cpp.

◆ GetObj() [4/6]

template<class T >

const T & ObjCryst::ObjRegistry< T >::GetObj	(	const string &	objName,
		const string &	className
	)		const

Get an object from its name in the registry.

The search starts at the end of the registry. Also check the class of the object.

Definition at line 1027 of file RefinableObj.cpp.

◆ GetObj() [5/6]

template<class T >

T & ObjCryst::ObjRegistry< T >::GetObj ( const unsigned int i )

Get object #i in the registry.

Use with caution. The order of the objects changes as objects are added and removed.

Definition at line 996 of file RefinableObj.cpp.

◆ GetObj() [6/6]

template<class T >

const T & ObjCryst::ObjRegistry< T >::GetObj ( const unsigned int i ) const

Get object #i in the registry.

Use with caution. The order of the objects changes as objects are added and removed.

Definition at line 1002 of file RefinableObj.cpp.

◆ list_begin()

template<class T >

list< T * >::const_iterator ObjCryst::ObjRegistry< T >::list_begin

low-level access to the underlying list begin().

Const access as we do not want the number and order of objects to change, but the objects themselves can be modified. This iterator should remain valid even if an object is removed.

Definition at line 1148 of file RefinableObj.cpp.

◆ list_end()

template<class T >

list< T * >::const_iterator ObjCryst::ObjRegistry< T >::list_end

low-level access to the underlying list end().

Const access as we do not want the number and order of objects to change, but the objects themselves can be modified. This iterator should remain valid even if an object is removed.

Definition at line 1153 of file RefinableObj.cpp.

Member Data Documentation

◆ mAutoUpdateUI

template<class T >

bool ObjCryst::ObjRegistry< T >::mAutoUpdateUI

private

Enable the user interface update.

If true, any time an object is added, it will be added to the user interface (wx...). If objects have not been added to the user interface, this can be done asynchronously using UpdateUI() which will go through the list of objects and add those not yet displayed.

This does not affect the removal of objects.

Definition at line 763 of file RefinableObj.h.

The documentation for this class was generated from the following files:
